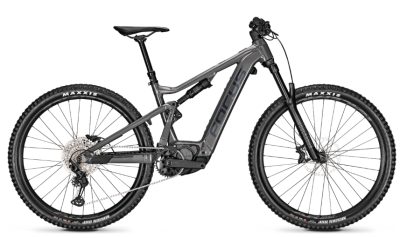

Focus Jam² 7.8 Bike - 2022

€5,799.00
Add to My Wishlist Brand's Product Page Brand's Website
Listing
Notify me for this product
This product is a Listing product. If you are interested in this product, please let us know! Just click here above, leave your email and we will notify you as soon as a Vendor will put on sale this product!

Specs Overview

Brand Focus
Product Type Bike
Category Bikes | eBike | eMTB
Model Year 2022
Model Jam² 7.8
Color Turquoise, Grey
Select Configuration
Loading...

Description

MORE DYNAMIC AND RANGE, BUT LESS WEIGHT Shimano's EP8 e-drive offers dynamic power and a lightweight system that supports the JAM² 7.8's agile geometry. You have two motor support profiles that you can customise to your needs. Thus, you can easily switch via the display between a smooth and continues profile for your ride to the trails and a very dynamic, progressive profile for your actual trail ride. It's all up to your preferences. Furthermore, our specially developed, integrated, yet removable battery supports your super long rides with 720 Wh. Additionally, a USB C port on the top tube gives you the opportunity to charge your devices. OPTIMIZED KINEMATICS FOR STRONG PROGRESSION With the upgrade of our well-known F.O.L.D. kinematics, your JAM² 7.8 is ready to shred even more. We kept the well-liked sensitivity of the F.O.L.D. but changed the positioning of our kinematics within the frame for strong bottom-out resistance. The characteristics are completely progressive which results in a chassis that offers a lot of stability in rough terrain. Especially e-mountain bikes with their additional weight of motor and battery benefit from more progression. This allows you to handle any trail while the chassis still provides comfort for long laps. Furthermore, the lower standover of the JAM² 7.8 gives you more space to play on the trail. MORE FUN ON THE TRAILS Riding performance first. The JAM² 7.8 will make your ride better – every time. An agile, nimble geometry in a slim, compact design will push you over all kind of trails whether technical or flow. The FLIP CHIP at your JAM² 7.8's linkage can be used to adjust your geometry to an even more aggressive riding style. The small adjustment of the head angle from 65,5° to 65° changes your whole set-up goal making it even more downhill-oriented. Additionally, the specially developed C.I.S. (Cockpit Integration Solution) design ensures a clean cockpit and constantly seamless shifting and braking. All cables run from the handlebar into the stem and through the headset into the frame. On top, all your essentials fit in the tool bag between top and down tube.
Read More... Hide

Wheel Size
29"
Bike Type
eMTB
Brake Type
Disc
Telescopic Dropper
No
Material
Aluminium
Electric
yes
Frame
7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. GEN2 kinematic, 148x12 mm thru axle, internal cable routing, USB-C port, post mount 203 mm
Frame Material
Aluminium
Size

If you are on a listing page, in this field you will find all the available sizes for that specific product. If you are instead on an ad page, this field reports the Size of the spedific product that is for sale.

The Size is one of the most important information for choosing the best fitting product to your body. Wehtere it is a bicycle or gear. Speaking about bike clothing and shoes, sizes follow the international size charts, but when it comes to bicycles and frames it is not possible to define a standard. Bicycles and frames come in many different shapes and geometries and this results in several sizing methods. As a general rule, though, you can assume that road bicycles are sized by the lenght the seat tube in centimeters (52, 54, 56, ...) and mountain bikes are instead sized by the S,M,L, ... rule. Our advice, is to look carefully at the sizing chart you can find in our product pages, but to be sure you are choosing the best fit for you, always refer to your trusted dealer or shop, because he is the one who is the one who can assist you at best for this purpose.

S, M, L, XL
Front Suspension
Rock Shox 35 Gold RL 29 Boost, 110x15 mm, 44 mm rake, 150 mm travel
Front Suspension Travel
160
Shock
Rock Shox Deluxe Select, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing
Rear Suspension Travel
150
Suspension Layout
Full Suspended
Headset
ACROS ZS56/ZS66, FOCUS C.I.S. Integrated, 1.5/1.8" angle headset 0.6
Front Hub
Shimano MT410, 15x110 mm
Rear Hub
Shimano MT410, 12x148 mm
Hub Spacing
Front: 110mm Boost; Rear: 148mm Boost
Rims
RaceFace AR30 Offset
Spokes
NA
Inflation Type
Tubeless
Tyres
MAXXIS MINION DHF, 63-622
Brakeset
Shimano MT520, hydraulic disc brake BRAKE LEVER Shimano MT520
Shifters
Shimano SLX M7100, 12-speed
Rear Derailleur
Shimano SLX M7100, 12-speed
Crankset
Samox EC40 ISIS Max: 36t
Cassette
Shimano Deore CS-M6100, 12-speed Min: 10t, Max:51t
Chain
Shimano CN-LG50
Pedals
Not Included
Power Meter
No
Saddle
FOCUS Race SL
Seatpost
Post Moderne dropper post PM-214, 34.9 mm
Stem
FOCUS C.I.S. integrated, 50 mm, 0
Handlebar
Handlebar, 800 mm, rise: 35 mm, backsweep: 9
Grips
NA
Motor Brand
Shimano
Motor Model
Steps EP8 (MY 21)
Battery Brand
Focus
Battery Model
Jam2 7 Series 720
Belongs to MY Catalog
2022

Weight Limit
NA
Women Specific
no
Kid Specific
no
Accessories Included
DISPLAY Shimano SC-E5003
Integrated Lights
No
Integrated Lock
No

Eureka SKU

The Eureka SKU is a universal product code (UPC) that univocally defines a specific product in the bicycles' market.

Sharing the Eureka SKU of a listing bicycle, for example, means to indicate a very well-defined combination of Brand, Model, Mounting, and Model Year parameters that define a single bike model and no one else. The Eureka SKU of an Ad product, instead, is built from other information that guarantees it is still unique compared to all present, past, and future products managed by EurekaBike.

2206190009
Manufacturer Code

The Manufacturer Code is a unique code that defines a particular Model from the side of the producer or brand. Often, this code can be found in manufacturers' catalogs or websites, but due to producers not adopting always the same standards, when the Manufacturer Code is not available, at EurekaBike we give the product an internally created Manufacturer Code based on the defining parameters of the product itself.

jam-7-8-22
RRP (EUR)RRP Means Recommended Retail Price. It is to say, the price that the manufacturer suggest to shop for selling a certain item. It is usually the maximum price you can find for a specific item, sold as new.
€5,799.00
Weight (gr)
25,0 kg

Sizes and additional images for Focus Jam² 7.8
