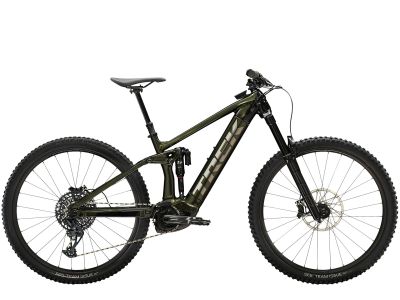

Enduro MTB Trek Rail 9 GX 2022
€ 7599.00
Description
This model is not available in the US. Rail 9 is our best aluminum long-hike electric mountain bike. It features a suspension system and components ready for the most challenging enduro adventures, while the powerful new Bosch drive system will get you back on top at an amazing speed.
This model is not available in the US. Rail 9 is our best aluminum long-hike electric mountain bike. It features a suspension system and components ready for the most challenging enduro adventures, while the powerful new Bosch drive system will get you back on top at an amazing speed.
MANUFACTURER’S PAGE
EUREKA SKU
22032900001
SPECS OVERVIEW
| SIZES |
S,M,L,XL |
|---|---|
| COLORS | Black Olive/Trek Black |
| BRAKE TYPE | Disc |
| WHEELS SIZE | 29" |
| CASSETTE | SRAM Eagle XG-1275, 10-52, 12 velocità |
| INFLATION | Tubeless |
| BIKE TYPE | eMTB |
| Electric | yes |
Data Sheet
Basic Information
| Brand |
Trek |
|---|---|
| Model |
Rail |
| Mount |
9 GX |
| Model Year |
2022 |
| Category |
Bikes | eBike | eMTB |
| Frame Material |
Aluminium |
| Bike Type | eMTB |
| Women Specific |
no |
| Kids Specific |
no |
| Suspension Layout | Full Suspended |
| Brake Type | Disc |
| Electric | yes |
| Manufacturer's Code |
35356-22 |
| RRP |
€ 7599.00 |
Vehicle
| Frame | Alluminio Alpha Platinum, batteria integrata rimovibile (RIB), tubo sterzo conico, passaggio cavi interno Control Freak, rocker link in magnesio, Motor Armor, Mino Link, ABP, Boost148, perno passante 12mm, escursione 150mm. Escursione massima compatibile forcella ant: 170mm (580mm axle-to-crown) |
|---|---|
| Headset | NA |
| Front Suspension | RockShox ZEB Select+, molla DebonAir, ammortizzatore Charger 2.1 RC, testa ottimizzata per e-MTB, cannotto sterzo conico, offset 44mm, Boost110, Maxle Stealth 15mm, escursione 160mm. |
| Front Suspension Travel | 160 |
| Shock | RockShox Super Deluxe Ultimate RT3, molla DebonAir, ammortizzatore a 3 posizioni Thru Shaft, 230mm x 57,5mm |
| Rear Suspension Travel | 150 |
| Hub Spacing | Front: 110mm Boost; Rear: 148mm Boost |
| Front Hub | Lega Bontrager, cuscinetto sigillato, perno in lega, 6 bulloni, Boost110, perno passante 15mm |
| Rear Hub | Lega Bontrager, cuscinetto sigillato, 6 bulloni, Rapid Drive 108 denti, azionamento SRAM XD, Boost148, perno passante 12mm |
| Rims | Bontrager Line Comp 30, Tubeless Ready, 28 fori, larghezza 40mm, valvola Presta |
| Inflation Type | Tubeless |
| Tubes | Sigillante Bontrager TLR, 6oz |
| Tyres | Bontrager SE5 Team Issue, Tubeless Ready, fianchi Core Strength, tallone in aramide, 120tpi. 29x2.50” |
| Brakeset | Disco idraulico SRAM Code R w/ disc SRAM CenterLine, 6 bulloni, bordo arrotondato (Front: 180mm, Rear: 200mm) |
| Shifters | SRAM GX Eagle, 12 velocità |
| Rear Derailleur | SRAM GX Eagle |
| Crankset | SRAM X1 1000, 34T, lunghezza 165mm (max chainring: 34T) |
| Cassette | SRAM Eagle XG-1275, 10-52, 12 velocità |
| Chain | SRAM GX Eagle, 12 velocità |
| Pedals | Platform in nylon VP-536 |
| Saddle | Bontrager Arvada, binari cavi in Cr-Mo, larghezza 138mm |
| Seatpost | Size S: Reggisella telescopico Bontrager Line Elite, escursione 100mm, MaxFlow, passaggio cavi interno, 31,6mm, lunghezza 340mm; Size M: Reggisella telescopico Bontrager Line Elite, escursione 150mm, MaxFlow, passaggio cavi interno, 31,6mm, lunghezza 440mm; Size L, XL: Reggisella telescopico Bontrager Line Elite, escursione 170mm, MaxFlow, passaggio cavi interno, 31,6mm, lunghezza 480mm |
| Stem | Bontrager Elite, 35mm, 0 gradi, lunghezza 45mm |
| Handlebar | Bontrager Line, lega, 35mm, rise 27,5mm, larghezza 780mm |
| Grips | Bontrager XR Trail Elite, bloccaggio in nylon |
Weight
| Weight | M - 23.42 kg / 51.64 lbs (con sigillante TLR, senza camera d'aria) |
|---|---|
| Weight Limit | 136Kg |
| Battery Weight | NA |
Motor
| Motor Brand | Bosch |
|---|---|
| Motor Model | Performance Line CX - Derailleur (MY 20) |
| Motor Position | Central |
| Max Power | NA |
| Max Torque | 75Nm |
| Max Drive | Eco 60%, Tour 140%, eMTB 140%-340%, Turbo 340% |
| Max Speed | 25Km/h |
| Backpedal Function | No |
| Startup Behaviour | Very Sporty |
| Gear Shift Detection | Yes |
| Gear Type | Derailleur System |
| Motor Tech Specs | Eco: 40Nm, Tour: 50Nm, eMTB: 75Nm, Turbo: 75NmWeigth: <4,0Kg (ca.)Maximum Cadence: >120 |
Battery
| Battery Brand | Bosch |
|---|---|
| Battery Model | PowerTube 625 |
| Battery Description | What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. The well-secured PowerTube 625 will not fall out of its housing, even on demanding terrain. But is still easily removed. After approx. 3.7 hours, the battery is fully charged with the 6 A Fast Charger, while half the charge is already attained after approx. 1.4 hours. |
| Battery Position | Integrated Down Tube |
| Battery Weight | NA |
| Capacity | 625 |
| Voltage | 36V |
| Current Intensity | NA |
Other Information
Product Codes
| EUREKA SKU | 22032900001 |
|---|---|
| MANUFACTURER's CODE | 35356-22 |
